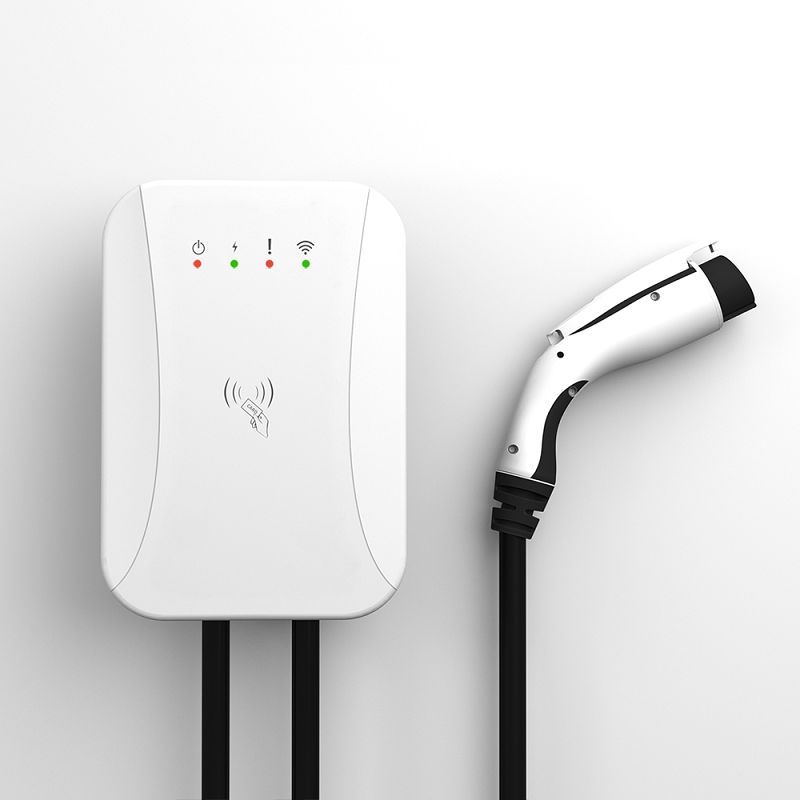

NEW! 7 KW 32A charger, may be mounted to a wall, pole, etc. Highly water-resistant with IP 65 rating for use in any environment. This charger is UL listed and has WiFi and RFID functionality built-in. A convenient free app is available to let you monitor and control charging progress from anywhere using your mobile phone. Comes with a 12 inch long NEMA 14-50 cord, so you can simply plug it in to your 50 amp outlet at home – but if you prefer to hardwire it or need a different plug or longer cord, it’s easy to swap out the included cord for another one. Charging cord is 5 meters or 16.4 ft long.

APP Control:
● Set Charging Current
● Control Stop & Start
● Schedule Charging
● View Charging History

  • Adapter: SAE J1772(Type 1); IEC62196-2(Type 2)
  • Output Rating : 1 phase 32A 7kw
  • Communication: WIFI, LAN(RJ-45),RS-485,OCPP 1.6J
  • Certification: CE, ROHS, REACH, cULus. FCC
  • Yes, it is UL rated
  • IP 65 rated: Rain-proof, suitable for indoor and outdoor applications
  • RCD Type B inside for maximum electrical safety.
  • High quality production and design standards for safe and reliable use with multiple fault protections: Overvoltage Protection, Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-temp Protection, Surge Protection, etc.



Power Specification
US Standard EU Standard
Charging Connector Type SAE J1772 (Type 1) IEC 62196-2 (Type 2)
AC Power Input Rating AC Level 2, 240V 230V±15%
Frequency Rating 50/60 Hz
AC Power Output Rating
7kw/32A
RCD Type B
Environmental
Storage Temperature -40 ~ 75℃ Operating Temperature -30 ~ 55℃
Operating Humidity Up tp 95%, non-condensing Altitude ≤2000m
Cooling Method Natural Cooling
M3P Wallbox Mechanical
IP Code IP65 Dimension(H×W×D) 310×220×95mm
Weight 7kg Charging Cable Length 5M (16.4FT)
Enclosure Material PC
User Interface & Control
Wifi   Yes Plug-and-Charging Yes
RFID Card Charging Yes App Charging Yes
Ethernet Interface Yes WiFi Function Yes
OCPP Protocol OCPP 1.6 Load Balance Optional
Protection
Over Voltage Protection Yes Under Voltage Protection Yes
Over Load Protection Yes Short Circuit Protection Yes
Earth Leakage Protection Yes Ground Protection Yes
Over-temp Protection Yes Surge Protection Yes
RCD Type B

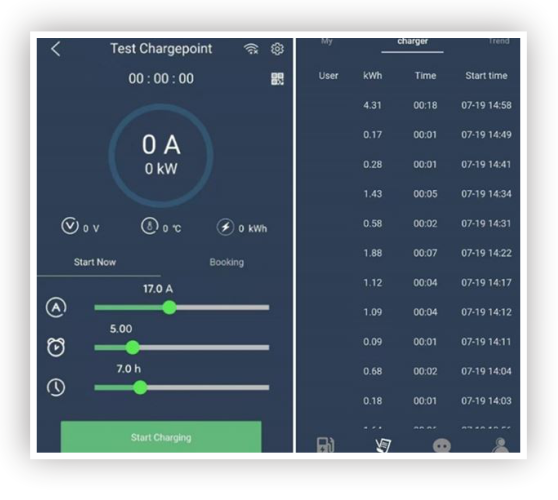

APP CONTROL

● SETTING CURRENT: you can set the current when the power grid is overload.

● CONTROLLING STOP & START: Control the Stop &Start by your phone, you can control it in anywhere.

● BOOKING OF CHARGING:If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.

● RECORD: you can check the charging record by APP in any time.

● The best Choice for home market.

The included app is currently available for Apple and Android devices.

Weight 16 lbs
Dimensions 18 × 15 × 7 in
